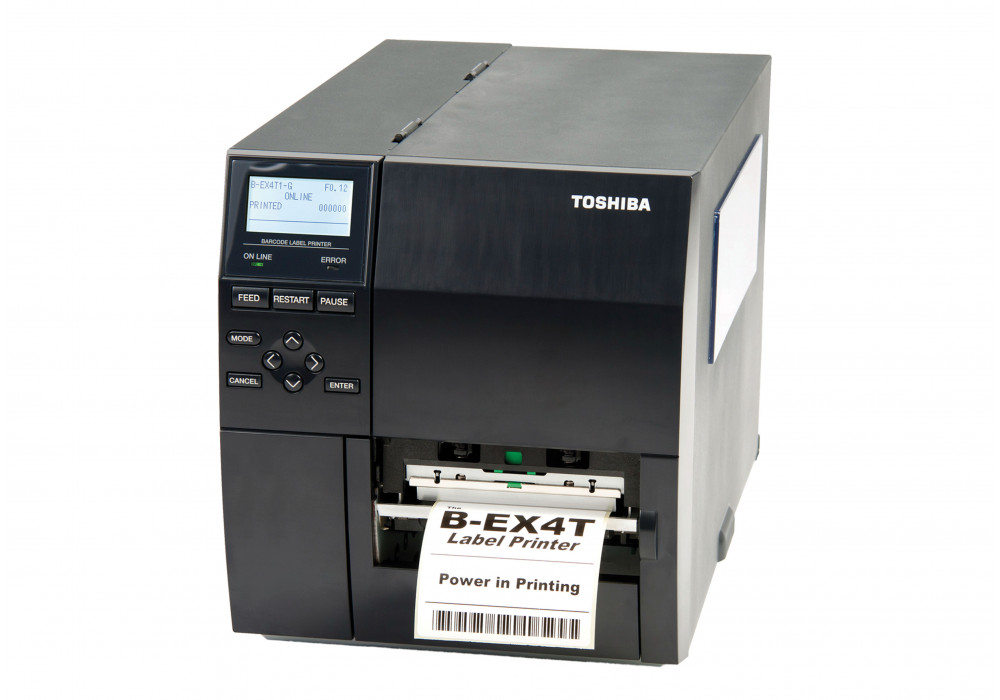

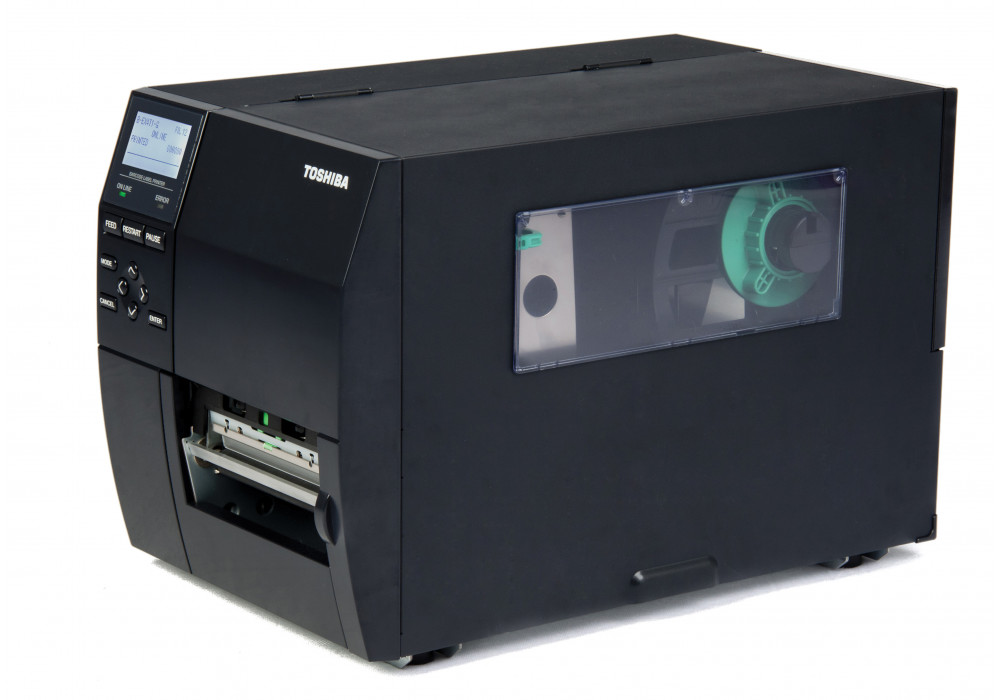

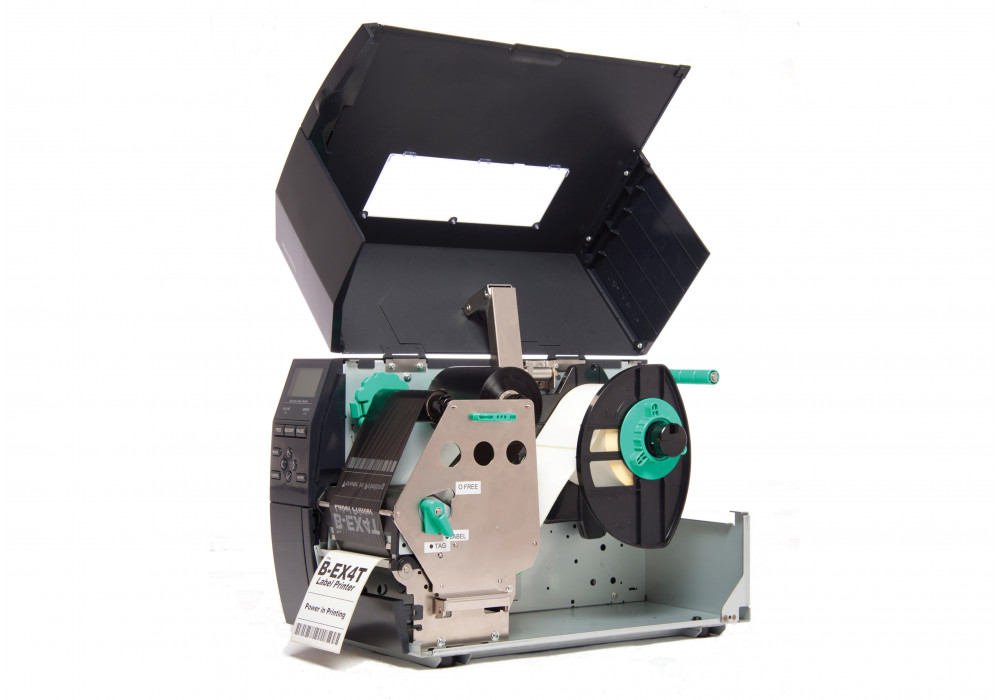

B-EX4T1

We have combined 60 years of Auto-ID knowledge, our extensive R&D and critical 'voice of customer' feedback with the exceptional qualities of our market-leading industrial printer range to design and manufacture a thermal printer series with enhanced performance, serviceability and truly green credentials.

The B-EX4T1 combines the tried and trusted features and functionality of the B-SX range with enhancements to increase performance and operability. Reliability and performance usually come at a cost, but with the B-EX4T1 premium capabilities come as standard, essentially lowering initial capital outlay and future-proofing your investment.
  • High-end product with a very attractive price
  • Superior performance and speed
  • Long life print head
  • The first ENERGY STAR certified barcode printer
  • Easy operation and simple maintenance

Specifications: B-EX4T1

GENERAL

Printing Technology:
Thermal transfer, Direct thermal
Thermal Print Head Type:
Near Edge
Interface:
Ethernet 10/100 BaseT, USB 2.0
Memory:
16 MB (Flash ROM), 32 MB (SD-RAM)
Alignment Base:
Central
Media Loading:
Side opening
Sensor:
Reflective, Transmissive

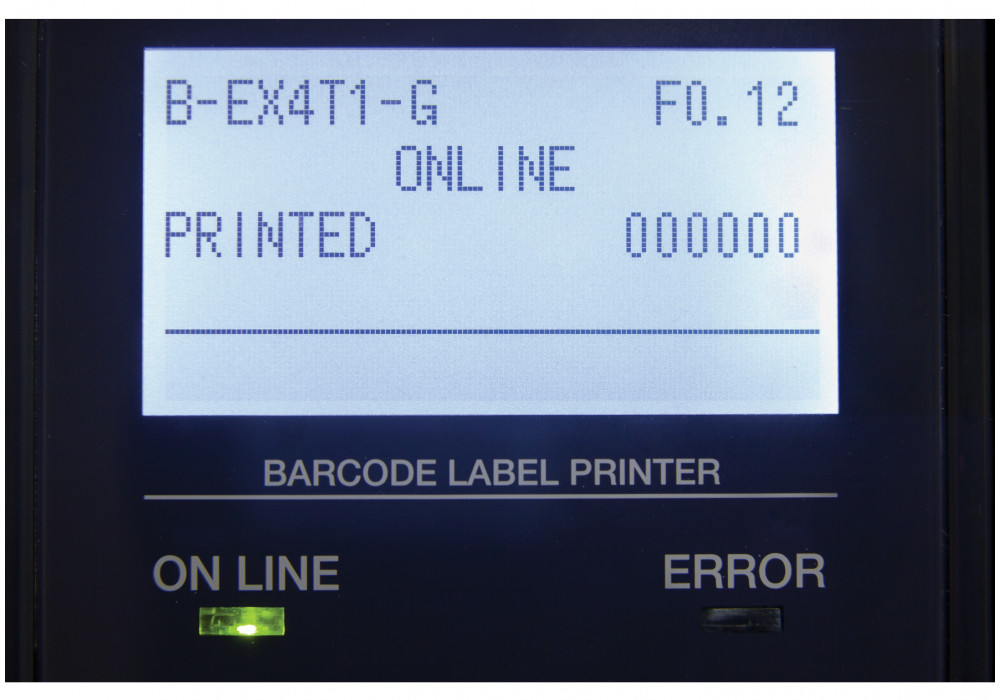

User Interface:
LCD screen (Graphic 128 x 64 dots), Status indicator
Operator Keys:
Feed, Restart, Pause, Menu navigation
Dimensions (W x D x H):
278 x 460 x 310 mm
Weight:
17 kg
Duty Cycle**:
30,000 labels / day

PRINT

Print Width:
4.09 inches (104 mm)
Print Speed:
Up to 14 ips (355.6 mm/sec)
Resolution:
203 dpi, 305 dpi
Fonts:
Bitmap, Outline, Writable characters, Optional True Type
Print Length:
Max. 1,498 mm
Barcodes:
EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW-7, CODE 39, CODE 93, ITF, MSI, CODE128, EAN128, Industrial 2 of 5, Customer Barcode, POSTNET, RM4SCC, KIX CODE, GS1 DataBar
2D Codes:
Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, CP Code

MEDIA

Media Width:
27 - 120 mm
Media Thickness:
0.13 - 0.263 mm
Max Outer Roller Diameter:
200 mm
Core Diameter:
76.2 mm
Media Type:
Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polyimide

RIBBON

Max Ribbon Roll Diameter:
90 mm
Standard Ribbon Length:
600 m
Ribbon Width:
41 - 112 mm
Ribbon Core Width:
Flush Cut to Ribbon Width

FUNCTIONS

Print Functions:
Ribbon Saving*, Z Mode ready
Programming Language:
TPCL, BCI
Issue Mode:
Batch, Auto cut*, Peel-off*
System Features:
RFID Ready, Double Engine Ribbon Tension Control, Snap-in Print Head, RFID SPRiNT, Energy Star compliant, SNMP tool for network management, BarTender UltraLite, Cover damper
**:
GUIDE to the no. of 4'' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance
