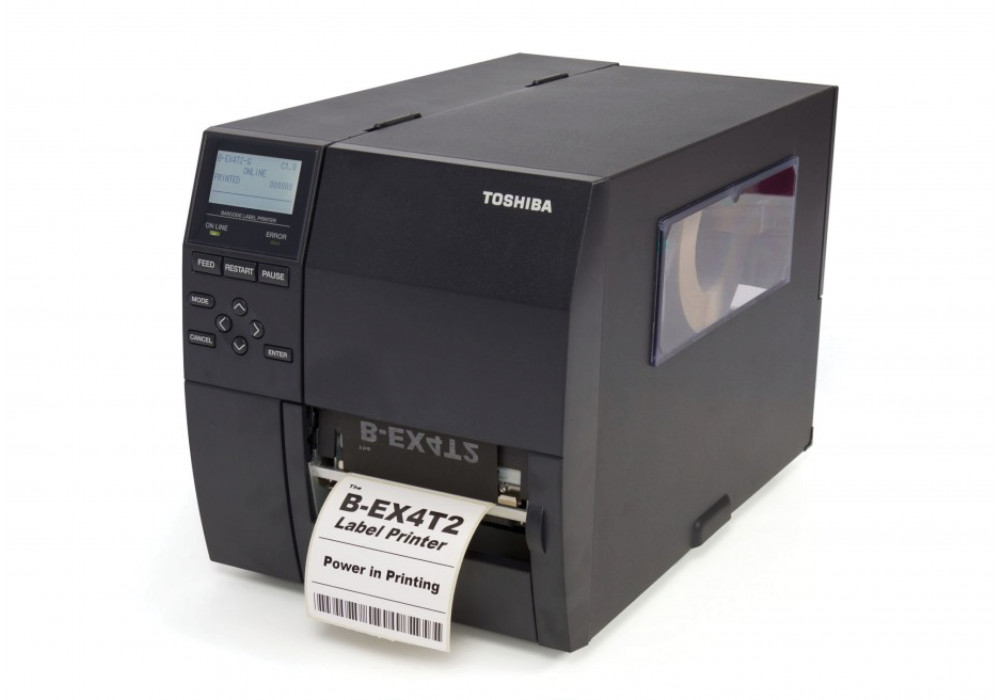

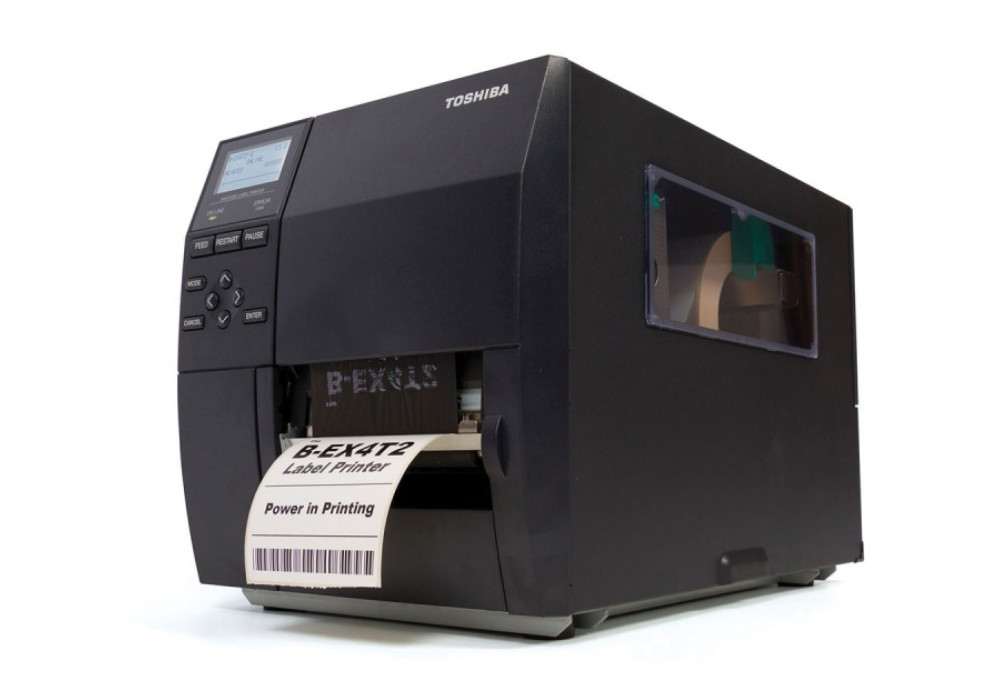

B-EX4T2

Toshiba has combined its experience, know-how and commitment to quality and reliability with market leading technologies to offer what will quickly become the industry standard .

The B-EX4T2 is a combination of all what made Toshiba a famous actor in the printing industry with technical standards often used in other barcode systems. The result: a printer able to deliver the image quality, the performance, the reliability and the flexibility in any type of environment with no need for the users to change their way of working . Its price positioning and its numerous advantages will soon make the B-EX4T2 a reference on the market.

Optimum image quality with up to 600 dpi print resolution

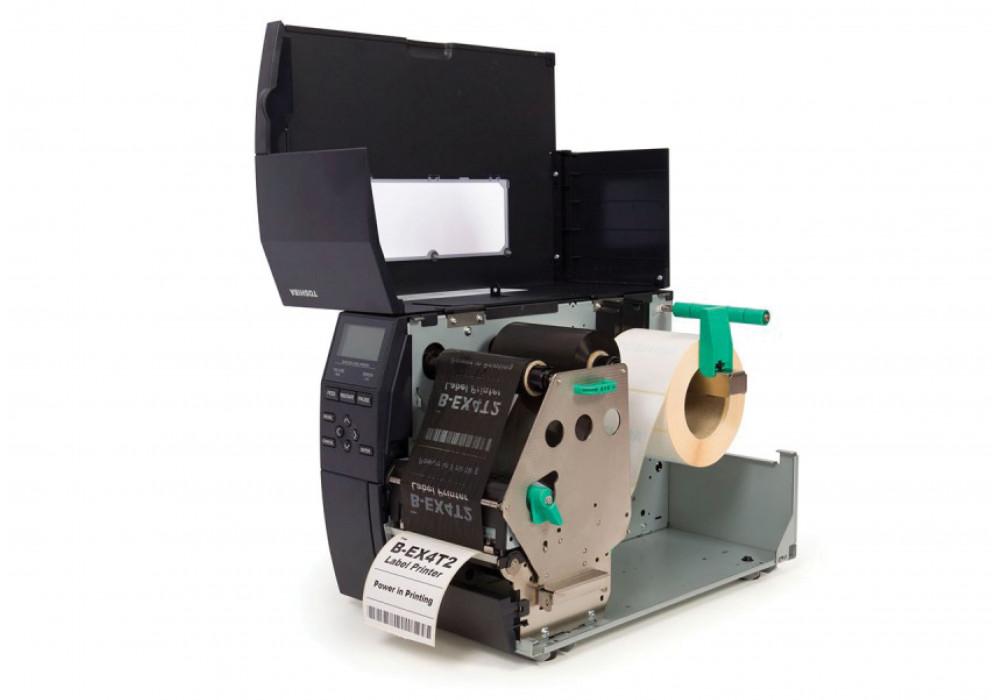

Maximum flexibility thanks to snap-in print head replacement
Enhanced performance at very attractive running cost
Environmentally friendly and ENERGY STAR compliant
Replacement of printers in place with no need for new ribbons, media or driver

Specifications: B-EX4T2

GENERAL

Printing Technology:: Thermal transfer, Direct thermal
Thermal Print Head Type:: Flat
Interface:: Ethernet 10/100 BaseT, USB 2.0
Memory:: 16 MB (Flash ROM), 32 MB (SD-RAM)
Alignment Base:: Left side
Media Loading:: Side opening
Sensor:: Reflective, Transmissive
User Interface:: LCD screen (Graphic 128 x 64 dots), Status indicator
Operator Keys:: Feed, Restart, Pause, Menu navigation
Dimensions (W x D x H):: 278 x 460 x 310 mm
Weight:: 17 kg
Duty Cycle**:: 30,000 labels / day

PRINT

Print Width:: 4.09 inches (104 mm)
Print Speed:: Up to 12 ips (304.8 mm / sec)
Resolution:: 203 dpi, 300 dpi, 600 dpi
Fonts:: Bitmap, Outline, Writable characters, Optional True Type
Print Length:: Max. 1,498 mm (203 dpi, 300 dpi), Max. 498 mm (600 dpi)
Barcodes:: EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW-7, CODE 39, CODE 93, ITF, MSI, CODE128, EAN128, Industrial 2 of 5, Customer Barcode, POSTNET, RM4SCC, KIX CODE, GS1 DataBar
2D Codes:: Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, CP Code

MEDIA

Media Width:: 22 - 114 mm
Media Thickness:: 0,08 - 0,17 mm
Max Outer Roller Diameter:: 200 mm
Core Diameter:: 76.2 mm
Media Type:: Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polyimide

RIBBON

Max Ribbon Roll Diameter:: 90 mm
Standard Ribbon Length:: 600 m
Ribbon Width:: 41 - 112 mm
Ribbon Core Width:: Flush Cut to Ribbon Width

FUNCTIONS

Print Functions:: Z Mode ready
Programming Language:: TPCL, BCI
Issue Mode:: Batch, Auto cut*, Peel-off*
System Features:: Double Engine Ribbon Tension Control, Snap-in Print Head, Energy Star compliant, SNMP tool for network management, BarTender UltraLite, Cover damper*
**:: GUIDE to the no. of 4'' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance
