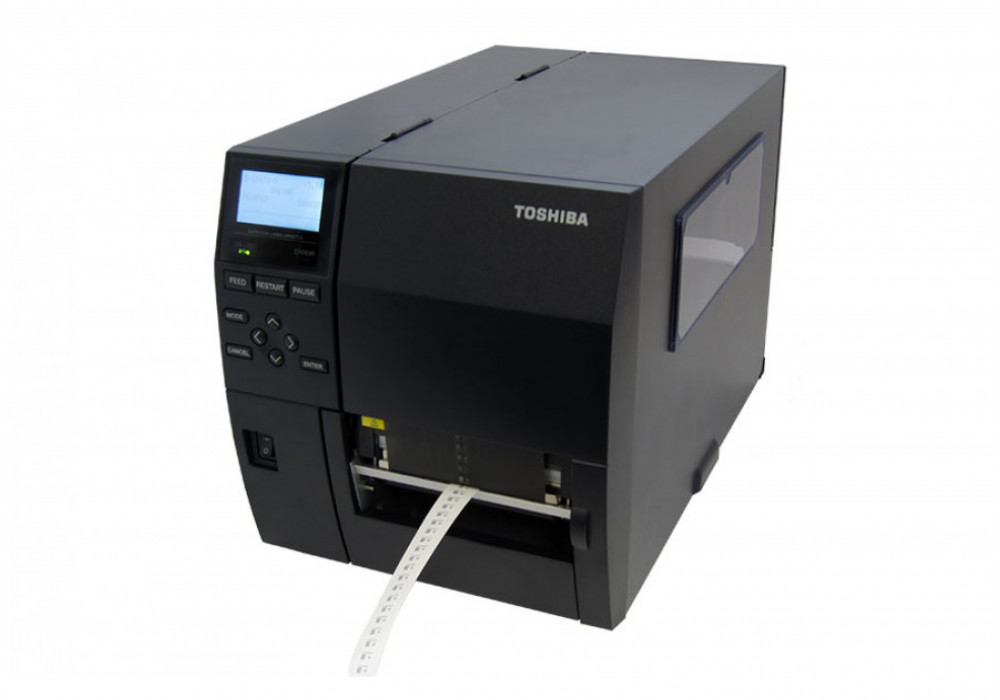

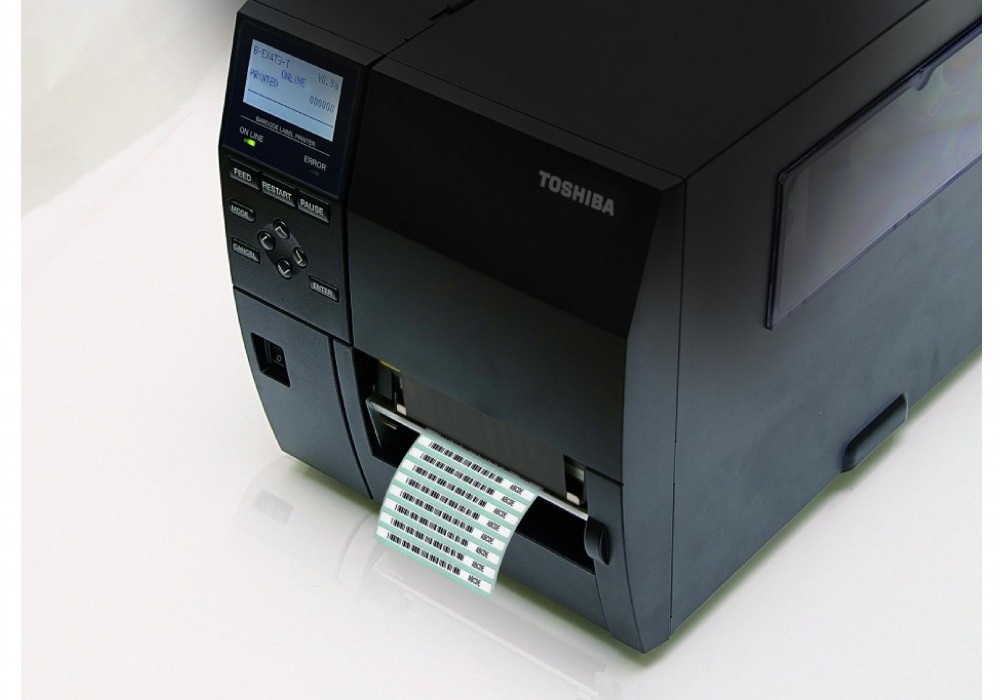

B-EX4T3

Toshiba has combined its experience, know-how and commitment to quality and reliability with market leading technologies to offer what will quickly become the industry standard .

The B-EX4T3 is a step up from the combination of all what made Toshiba a world renowned  player in the printing industry with technical standards often used in other barcode systems. The result: a high resolution printer that delivers super high accuracy in print and peel operations alongside Toshiba's renowned image quality, performance, reliability and the flexibility in any type of environment.
  • Optimum image quality with up to 600 dpi print resolution
  • Enhanced performance at very attractive running cost
  • Specifically designed to enable printing and peeling of very small labels

Specifications: B-EX4T3

GENERAL

Printing Technology:
Thermal transfer, Direct thermal
Thermal Print Head Type:
Flat
Interface:
Ethernet 10/100 BaseT, USB 2.0
Memory:
16 MB (Flash ROM), 32 MB (SD-RAM)
Alignment Base:
Centered
Media Loading:
Side opening
Sensor:
Reflective, Transmissive
User Interface:
LCD screen (Graphic 128 x 64 dots), Status indicator
Operator Keys:
Feed, Restart, Pause, Menu navigation
Dimensions (W x D x H):
278 x 460 x 310 mm
Weight:
17 kg
Duty Cycle**:
30,000 labels / day

PRINT

Print Width:
4.09 inches (104 mm)
Print Speed:
Up to 6 ips (152.4 mm / sec)
Resolution:
600 dpi
Fonts:
Bitmap, Outline, Writable characters, Optional True Type
Print Length:
Max. 498 mm
Barcodes:
EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW-7, CODE 39, CODE 93, ITF, MSI, CODE128, EAN128, Industrial 2 of 5, Customer Barcode, POSTNET, RM4SCC, KIX CODE, GS1 DataBar
2D Codes:
Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, CP Code

MEDIA

Media Width:
25 - 110 mm
Media Thickness:
0,13 - 0,17 mm
Max Outer Roller Diameter:
200 mm (170 mm when using 50.8 mm core)
Core Diameter:
76.2 mm, 50.8 mm
Media Type:
Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polyimide

RIBBON

Max Ribbon Roll Diameter:
70 mm
Standard Ribbon Length:
300 m
Ribbon Width:
41 - 115 mm
Ribbon Core Width:
Flush Cut to Ribbon Width

FUNCTIONS

Programming Language:
TPCL, BCI
Issue Mode:
Batch, Auto cut*, Peel-off*, High Accuracy Peel off *
System Features:
Double Engine Ribbon Tension Control, Snap-in Print Head, Energy Star compliant, SNMP tool for network management, BarTender UltraLite, Cover damper*
**:
GUIDE to the no. of 4'' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance
