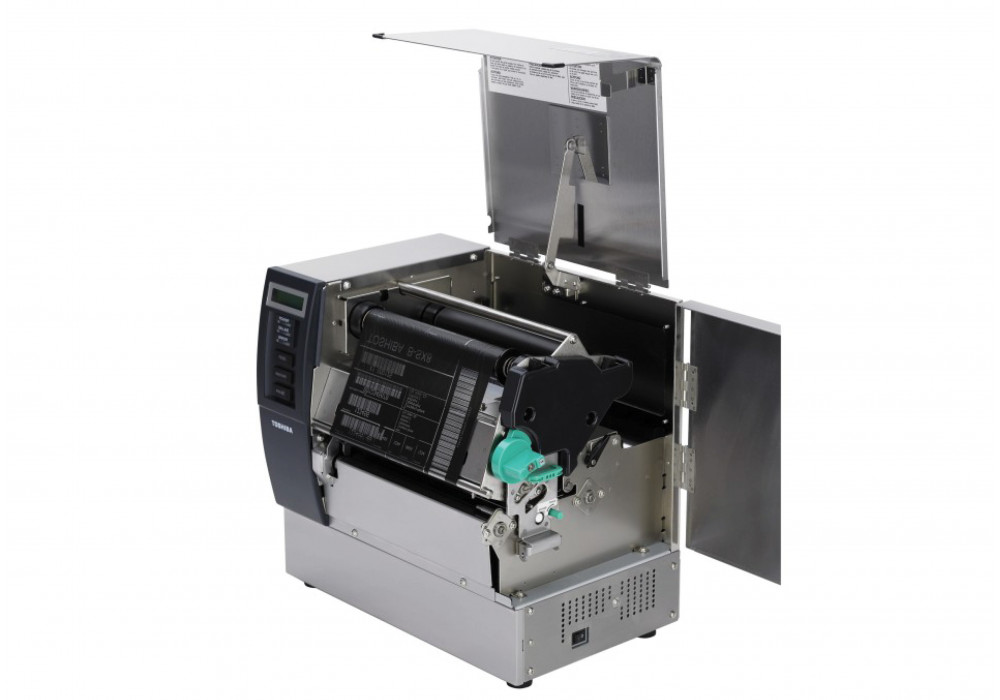

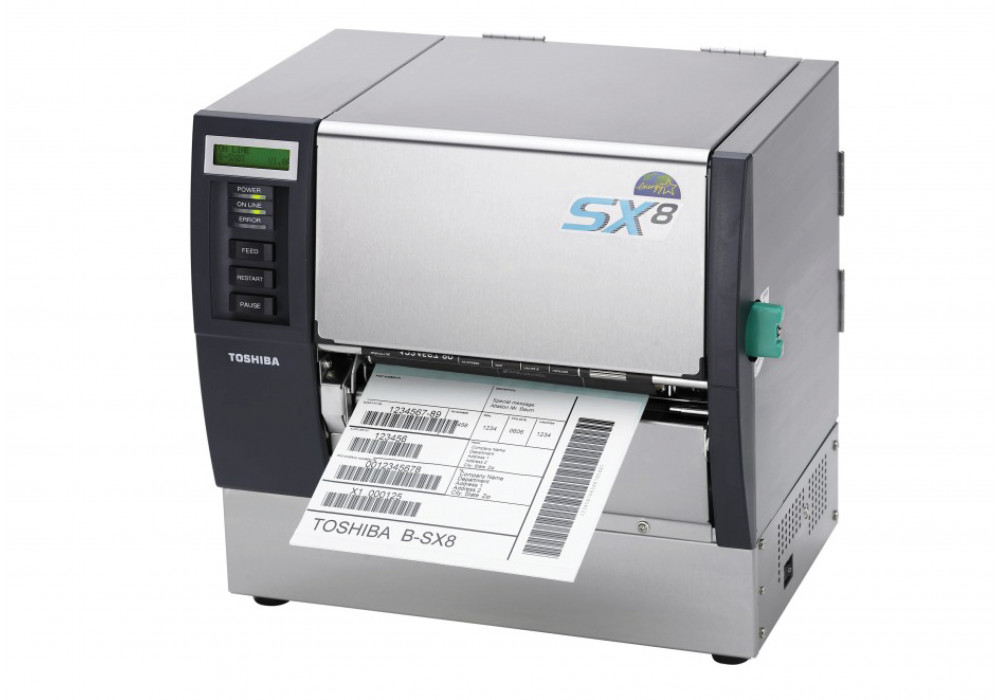

B-SX8T

The Toshiba B-SX8T: when large format goes with high performance and ground breaking technology.

The Toshiba B-SX8T excels in printing high quality large format labels thanks to its advanced Toshiba technology. Long lasting high resolution print head, unique ribbon save function, RFID capability are some of the advantages that make this Wide Web printer the ideal solution for industrial applications. The B-SX8T has already proved its reliability and its capacity to handle large print volume with maximum up time to contribute to your success.
  • High-speed processing of large file sizes
  • Near-Edge print head ensures excellent resolution
  • Standard ribbon save function for reduced running costs
  • Proved reliability to excel in industrial environment

Specifications: B-SX8T

GENERAL

Printing Technology:
Thermal transfer, Direct thermal
Thermal Print Head Type:
Corner Edge
Interface:
Parallel, Ethernet 10/100 BaseT, USB 2.0
Memory:
16 MB (Flash ROM), 16 MB (SD-RAM)
Alignment Base:
Central
Media Loading:
Front opening
Sensor:
Reflective, Transmissive
User Interface:
LCD screen (16 characters x 2 lines), Status indicator
Operator Keys:
Feed, Restart, Pause
Dimensions (W x D x H):
416 x 289 x 395 mm
Weight:
25 kg
Duty Cycle**:
30,000 labels / day

PRINT

Print Width:
8.4 inches (213.3 mm)
Print Speed:
Up to 8 ips (203.2 mm/sec)
Resolution:
305 dpi
Fonts:
Bitmap, Outline, Writable characters, Optional True Type
Print Length:
Max. 1,364 mm
Barcodes:
EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW-7, CODE 39, CODE 93, ITF, MSI, CODE128, EAN128, Industrial 2 of 5, Customer Barcode, POSTNET, RM4SCC, KIX CODE, RSS
2D Codes:
Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, CP Code

MEDIA

Media Width:
98.6 - 225 mm
Media Thickness:
0.13 - 0.17 mm
Max Outer Roller Diameter:
200 mm
Core Diameter:
76.2 mm
Media Type:
Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polyimide

RIBBON

Max Ribbon Roll Diameter:
72 mm
Standard Ribbon Length:
300 m
Ribbon Width:
115 - 224 mm
Ribbon Core Width:
Fixed 228 mm

FUNCTIONS

Print Functions:
Ribbon Saving, Z Mode ready
Programming Language:
TPCL, BCI
Issue Mode:
Batch, Auto cut*, Peel-off*
System Features:
Double Engine Ribbon Tension Control, SNMP tool for network management, BarTender UltraLite, Cover damper
**:
GUIDE to the no. of 4'' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance
