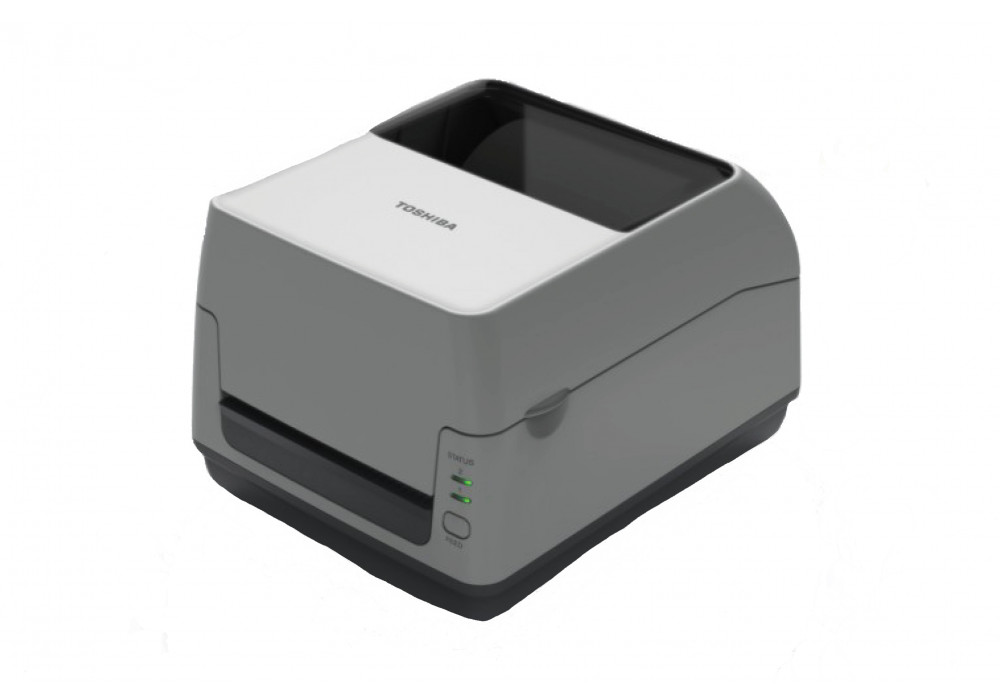

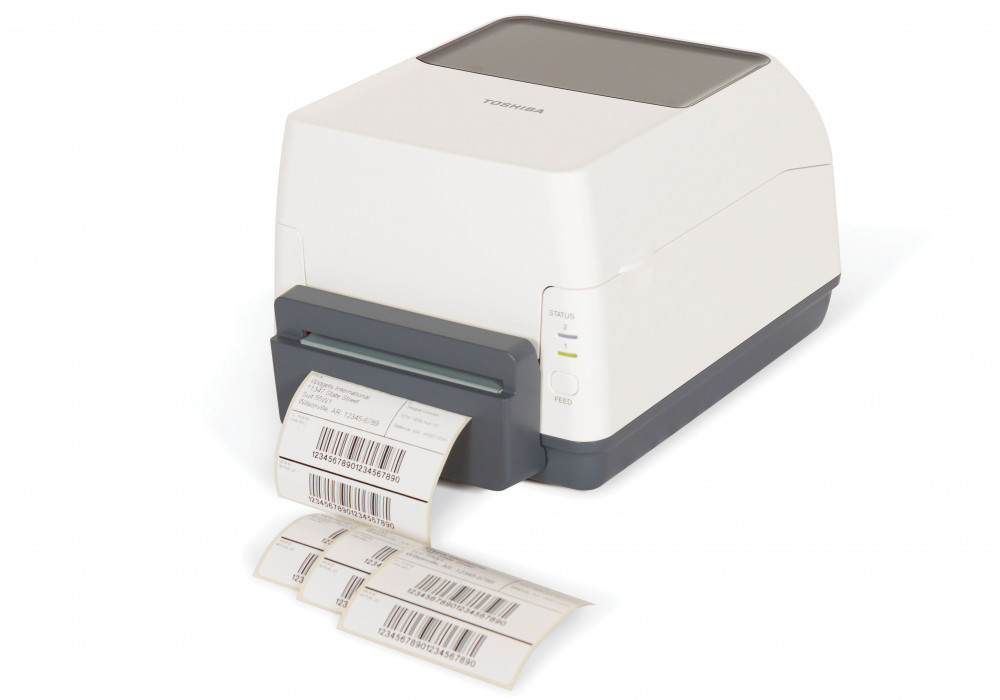

B-FV4T

Easy to use, low energy consumption and flexibility – this is the new  B-FV4T. With this very compact system you can produce labels at highest performance.

The features of B-FV4T give great flexibility and productivity in a wide variety of applications. A high processing speed as well as the ease of servicing and maintenance guarantee low operating costs. Toshiba´s innovative technology comes in a compact design for a small footprint. The system complies with the highest environmental standards and has been awarded the ENERGY STAR®.
  • Class leading speed printing increases efficiency and productivity
  • Ease of use and maintenance
  • Reduced downtime as a result of high reliability
  • Compliant with ENERGY STAR®

Specifications: B-FV4T

GENERAL

Printing Technology:
Thermal transfer, Direct thermal
Thermal Print Head Type:
Flat

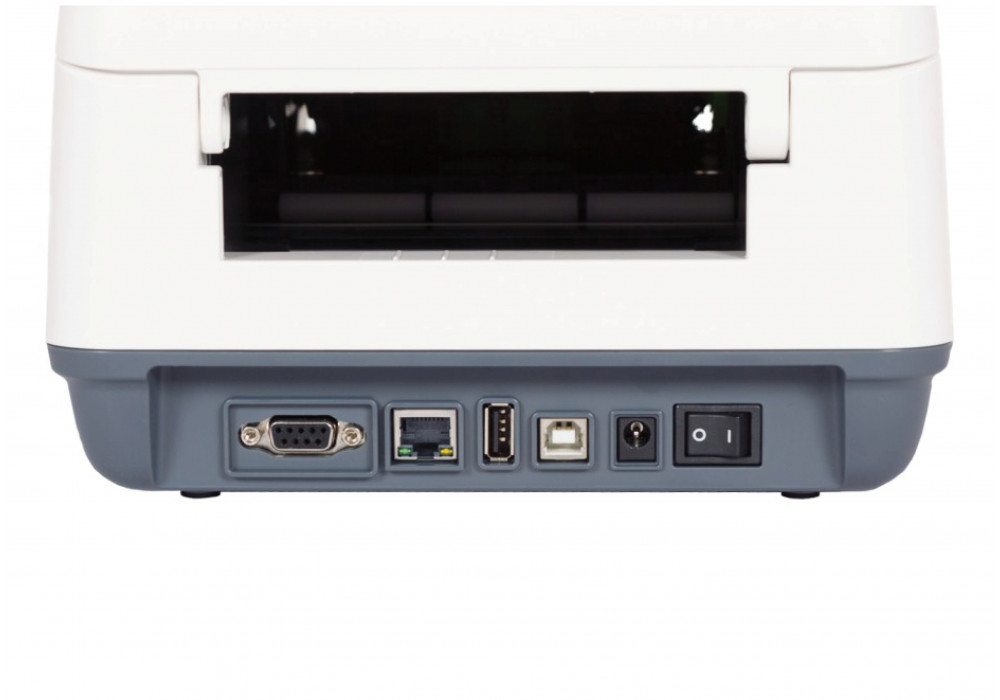

Interface:
GS12/TS12 model: USB 2.0, Ethernet 10/100 BaseT
GS14/TS14 model: USB 2.0, Ethernet 10/100 BaseT, Serial
GS16/TS16 model: USB 2.0, Parallel
Memory:
32 MB (Flash ROM), 16 MB (SD-RAM)
Alignment Base:
Central
Media Loading:
Top opening
Sensor:
Reflective, Transmissive

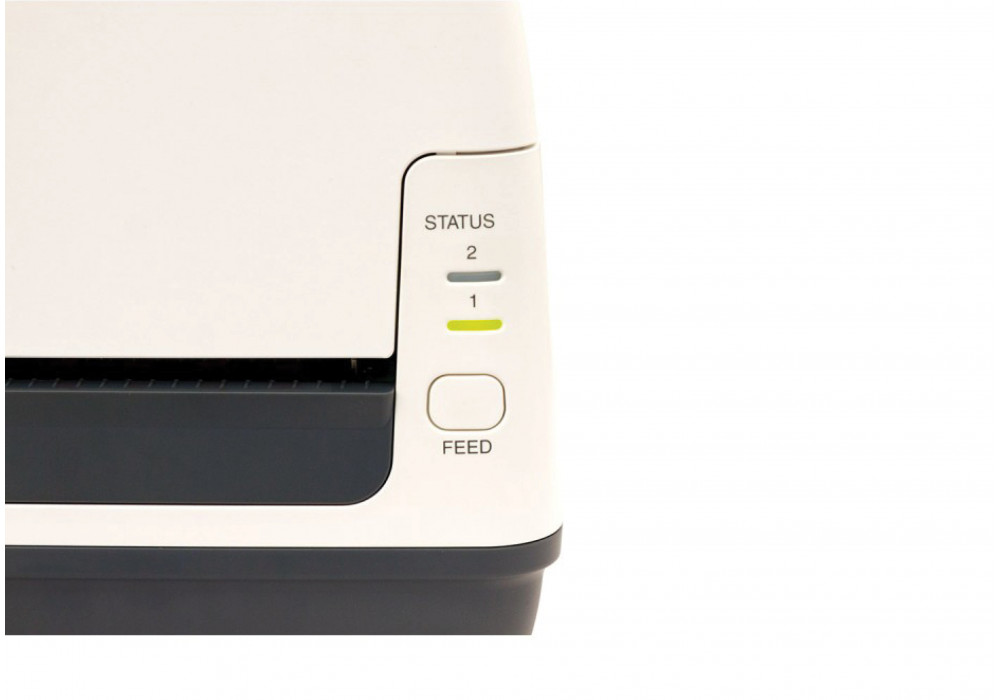

User Interface:
Status indicator
Operator Keys:
Feed
Dimensions (W x D x H):
220 x 279 x 182 mm
Weight:
2.4 kg
Duty Cycle**:
500 labels/day

PRINT

Print Width:
4.25 inches (108 mm) (203 dpi)
4.16 inches (105.7 mm) (300 dpi)
Print Speed:
Up to 6 ips (152.4 mm/sec) (203 dpi)
Up to 4 ips (101.6 mm/sec) (300 dpi)
Resolution:
203 dpi, 300 dpi
Fonts:
Bitmap
Print Length:
Max. 997 mm (203 dpi)
Max. 455.2 mm (300 dpi)
Barcodes:
EAN8, EAN13, UPC-A, UPC-E, NW-7, CODE 39, CODE 93, ITF, MSI, CODE128, EAN128, Industrial 2 of 5, POSTNET, RM4SCC, KIX CODE, USPS Intelligent mail barcode, GS1 DataBar
2D Codes:
Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417

MEDIA

Media Width:
22.4 - 118 mm
Media Thickness:
0.06 - 0.19 mm
Max Outer Roller Diameter:
127 mm, 203 mm*
Core Diameter:
25.4 - 38.1 mm, 76.2 mm*

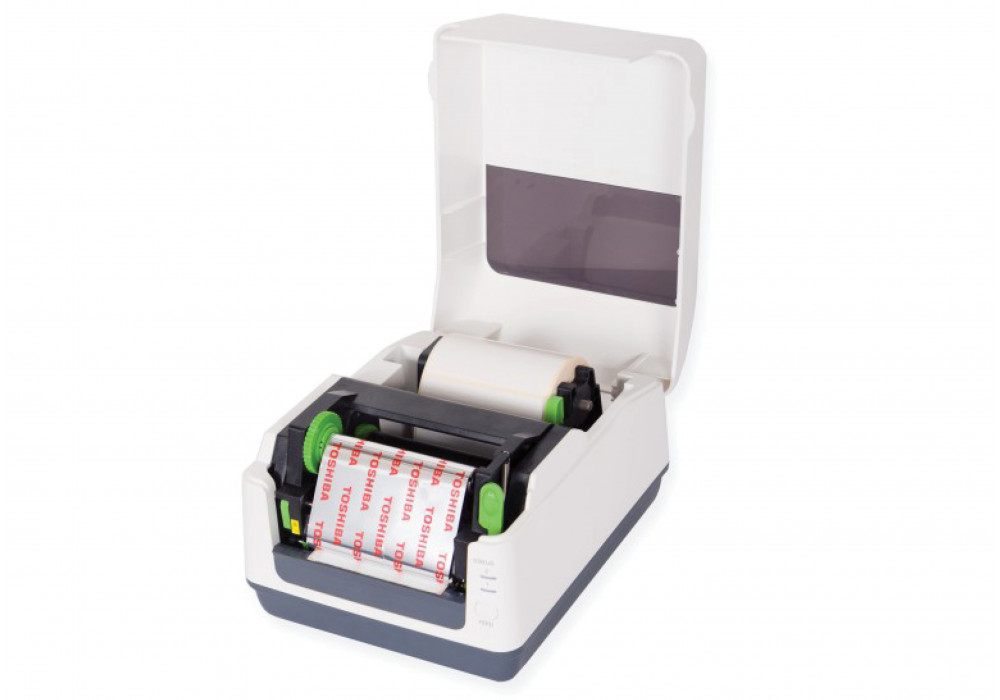

RIBBON

Max Ribbon Roll Diameter:
40 mm
Standard Ribbon Length:
300 m, 100 m
Ribbon Width:
40 - 110 mm
Ribbon Core Width:
Flush cut to Ribbon Width

FUNCTIONS

Print Functions:
ZPL, EPL***, DPL***, IPL (203 dpi only)*** Emulation
Programming Language:
TPCL, BCI
Issue Mode:
Batch, Auto cut*, Peel-off*
System Features:
BarTender UltraLite
Note:
- Only GS14/TS14 model available as stock item!
***:
Planned for future development
**:
GUIDE to the no. of 4' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance.
**:
GUIDE to the no. of 4' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance.
***:
Planned for future development
